Product Information
Categories: Customize Your Vessel, Maintain or improve your engine, Outboard Jack Plates$1,179.00 – $1,601.00
This dependable, self contained, and water proof CMC Hydraulic Jack Plate from Boaters Catalog has a maximum lifting capacity of 7,853 pounds of thrust. You will have no problem lifting even a V-6 300 hp max. motor at full throttle. The hydraulic actuator is mounted inside the structure of the Power-Lift, yet it is fully accessible without removing the engine. There are no hoses to contain, nor will you have to contend with mounting a pump and reservoir inside your boat, as is the need with other transom jacks.
The catalog cannot determine freight accurately. We will contact you after the sale with the correct freight. If you wish, you may call us at 800-745-0765 for a freight quote prior to ordering.
Description

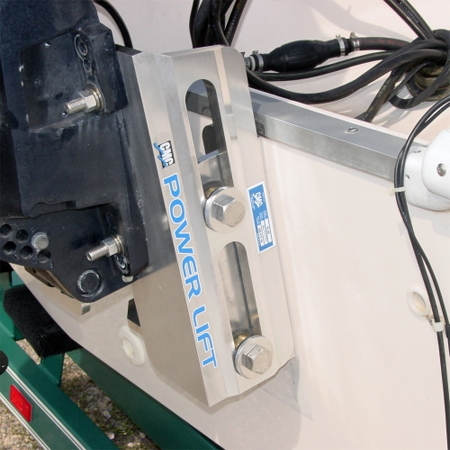

CMC Hydraulic Jack Plate
Features Of Patented Hydraulic Power-Lift®
- Made of 6061 T6 alloy aluminum extrusions and fastened with stainless steel fasteners. Ideal for fresh or salt water use. No welds or castings to break.
- It contains a permanent magnet motor for more power and constant torque. The cylinder within the actuator has twice the lifting capacity than other transom jacks on the market. It contains a no-leak seal and wiper that keeps dirt and water out of the working parts. The system is made of 100% non-ferrous material which makes it impervious to saltwater and freshwater.
- The patented roller design means less friction, longer wear, less maintenance, and virtually no binding problems which are common with other transom jacks. The roller assembly contains a stainless steel 3/4″ pin with aluminum-bronze alloy rollers. The roller is highly impact resistant, corrosive resistant, and has a high load carrying capacity. This patented design virtually eliminates any chance of binding which is common with other transom jacks.
- The PL-65 is rated for V-6 motors and smaller and gives you 5″ of vertical travel with 1-1/2″ of adjustment on the motor bracket and 1-1/2″ of adjustment on the transom bracket. A total of 8” of possible adjustment.
Transom Support Plates / Transom Washer Plates
Made of strong 3/8" 6061 T6 alloy aluminum (not cast aluminum), the CMC transom washer can eliminate bolts “biting” into transoms and can more evenly distribute loads on high performance engines.
Hole centers: Top Plate – 12 7/8" Bottom Plate – 9 7/8"
_____________________________________________________
CMC Transom Wedges and Setback Spacers (Item #20122)
These 2 degree wedges are designed to give extra positive or negative trim.
Features:
- Used as an aid for boats with an insufficient transom angle or for boats having planing problems at low speed
- Unique design of the CMC Transom Wedges allows you to also use them as set back spacers
- Simply stack and invert 2, 4, and 6 sets (sold in sets of two)
- Fit all Transom jacks, jack plates, Outboard lifts, tilt trim units, and outboard motors with a standard B.I.A bolt pattern
- Made of strong 6061 T6 alloy aluminum (not cast aluminum)
