Categories: Customize Your Vessel, Maintain or improve your engine, Outboard Jack PlatesPrice range: $288.00 through $728.00
The CMC Manual Jack Plates from Boaters Catalog has comparable design and construction features as the hydraulic
lift without the convenience of automated adjustment.
If you desire engine performance enhancement, but don’t have the budget for our hydraulic unit then the ML-65 may be exactly what you are looking for. Our manual units provide similar benefits to the hydraulic units. However, since you cannot raise or lower the engine as you are moving you will not receive the same performance enhancements associated with a hydraulic unit.
The 4 and 5-1/2 inch set back plates are rated for V-6 and smaller motors. They are NOT designed for V-8 or racing applications.
Manual ML-65HD, item#65512 rated for V8 400HP outboards or smaller.
(See description below for transom washer plates and wedges.)
See all our quality CMC products for your outboard here.
The catalog cannot determine freight accurately for these products. We will contact you after the sale with the correct freight. If you wish, you may call us at 800-745-0765 for a freight quote prior to ordering.
Description
More Information
Description
Manual Jack Plates
One Piece Manual Features:
• Made of 6061 T6 extruded aluminum alloy
• Stainless steel fasteners for maximum strength and durability
• Centrally located adjustment screw for positive alignment
• 5 1/2″ and 10” Set Backs from Transom are available
• 5″ Vertical Adjustment
• Designed to fit standard B.I.A. bolt pattern
• Aluminum models rated for up to V6 outboards
Two Piece Manual Features
• Made of 6061 T6 extruded aluminum alloy
• Stainless steel fasteners for maximum strength and durability
• 4” and 5 1/2″ Set Backs from Transom are available
• 5” of slot adjustment at the motor mounting bracket
• 1 ½” of adjustment at the transom bracket.

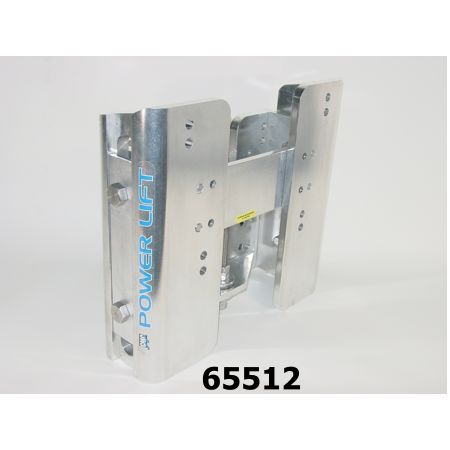

Manual ML-65HD, item#65512 rated for V8 400HP outboards
Transom Support Plates / Transom Washer Plates
Made of strong 3/8″ 6061 T6 alloy aluminum (not cast aluminum), the CMC transom washer can eliminate bolts “biting” into transoms and can more evenly distribute loads on high performance engines.
Hole centers: Top Plate – 12 7/8″ Bottom Plate – 9 7/8″
Transom Wedges and Setback Spacers (Item #20122)
These 2 degree wedges are designed to give extra positive or negative trim.
Features:
Used as an aid for boats with an insufficient transom angle or for boats having planing problems at low speed
Unique design of the CMC Transom Wedges allows you to also use them as set back spacers
Simply stack and invert 2, 4, and 6 sets (sold in sets of two)
Fit all Transom jacks, jack plates, Outboard lifts, tilt trim units, and outboard motors with a standard B.I.A bolt pattern
Made of strong 6061 T6 alloy aluminum (not cast aluminum)

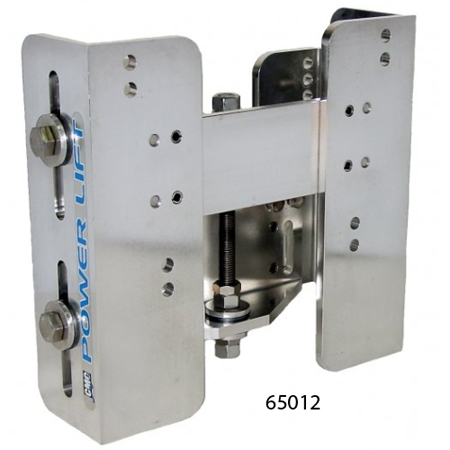

- 65012- ML-65-5 1/2 with 5 1/2 inch set back - DIM. 18 1/8"W x 15 1/5"H Weight 32#

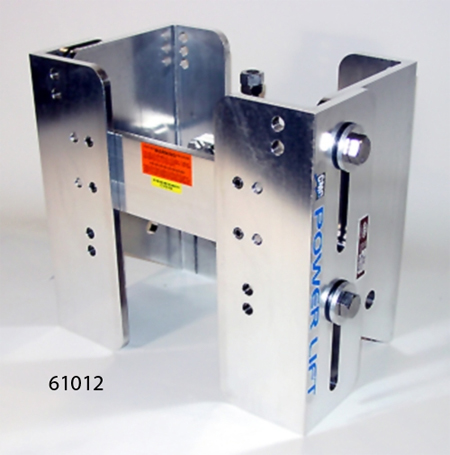

- 61012 - ML-65-10 with 10 inch set back - DIM. 18 1/8"W x 15 1/2"H Weight 43#

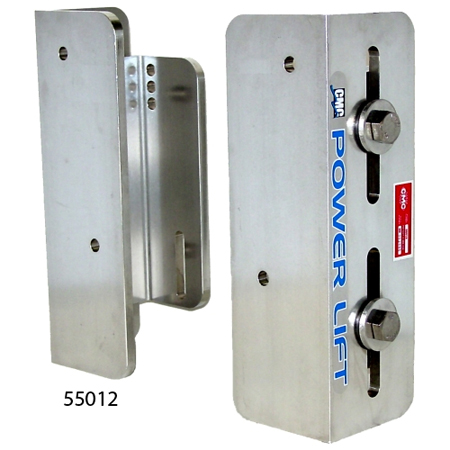

- 55012 - 2 Piece Manual w/5-1/2" setback 18 1/8" x 15 1/2"H (mounted) Weight 23#
- 40012 - 2 Piece Manual w/4" setback - DIM. 18 1/8"W x 15 1/2"H (mounted) Weight 20#
