Description

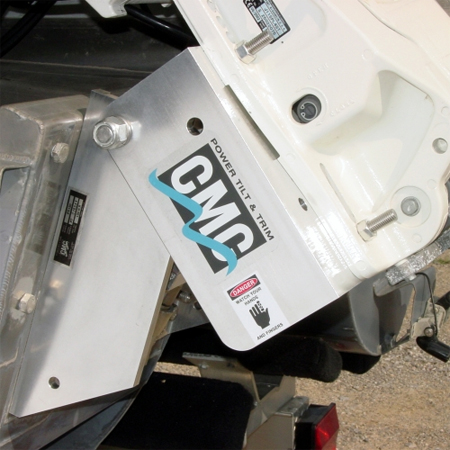

CMC PT130 Tilt and Trim for up to 130 HP
You Get Power Tilt & Trim, Better Boat Handling, More Speed, Lower Fuel Consumption and No More Back Strain!
PT-130 FEATURES:
• Rated for 130 H.P. and Smaller Motors.
• 6″ Set Back to Enhance Boat Stability and Performance.
• 20° of Trim and a Total of 90° of Tilt and Trim.
• 1/2″ 6061 T6 Extruded Aluminum Construction with Stainless Steel Fasteners.
• Electric Hydraulic Actuator Rated at 7853 lbs. of Thrust!
• Standard B.I.A. Bolt Hole Pattern.
• Convenient Adapter Kit Available for Clamp-on Motors.
• Four Stainless Steel Motor Mounting Bolts Included.
The PT-130 is a computer aided design, our commitment to quality and manufacturing excellence is evident in every product we make. The PT- 130 is constructed of 1/2″ 6061 T6 alloy aluminum extrusions and fastened with stainless steel fasteners for maximum strength and durability. No molded aluminum which has less resistance to stress. This system is made of 100% non-ferrous material which makes it impervious to saltwater and freshwater. Most Powerful On The Market The PT-130 is actuated with a totally waterproof marine electric hydraulic System that is rated OVER 7800 lbs. OF THRUST! Over 40% more powerful than other brands. It is also more impervious to saltwater and freshwater than others because it is made of 100% non ferrous materials. Our hydraulic system is completely sealed and submersible and runs without worry of water damage. No electromechanical ball screw ! Ideal For Any Type Of Boat The PT-130 will fit on virtually any type of boat and outboard motor. The PT-130 along with the optional trim gauge makes it very easy to know the exact angle of your motor. It’s especially convenient on pontoon boats. Rated for 10H.P. through 130H.P. motors, it fits standard B.I.A. bolt pattern motors without drilling holes. A convenient adapter kit is available for motors that are mounted with transom clamps. *Mounting Hardware Included With Every PT-130
Transom Clamp Adapter (Item #13022)
For installation of motors mounted with transom clamps, an adapter kit is available. This adapter kit is made for quick and easy installation of these type motors.
Works with CMC PT-130 Tilt & Trim, ATLAS THT-130C Tilt & Trim (our larger trim units sized for standard outboard engine mounting with BIA hole pattern).
Use with the PT-130 / THT-130C for installation of smaller motors mounted with transom clamps. Also works with ATLAS Micro Jacker.
This adapter kit is made for quick and easy installation of these transom clamp type of motors.
If your motor has clamps that tighten inside of the splash well, you will need to purchase this transom clamp adapter, if yyou want it to fit on Tilt & Trim units or Jack Plates designed for standard, full-size motor mounting.
Some motors are too big for the smaller Tilt & Trims or jack plates, but they need an adapter to fit on larger plates, these are the adapter plates.
____________________________________________________________________________________________________________

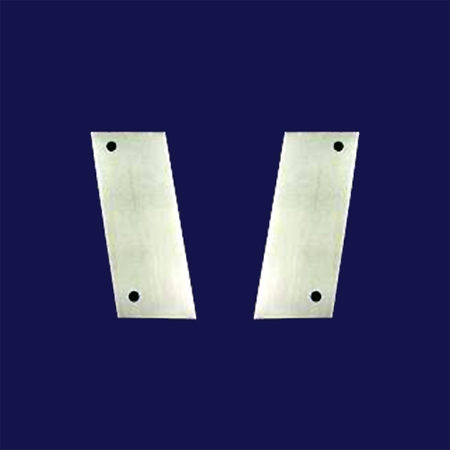

Transom Spacer for Pontoon Boat (Item #13032)
The transom on some pontoon boats are inset with an aluminum lip along the sides.
To conveniently mount the CMC PT-130 to this type transom, this transom spacer is available.
The transom spacers are 1 inch thick allowing you to mount the PT-130 without interference with the 1/2” to 3/4” lip around the transom on some pontoon boats.
