Product Information
Product code: AM-188 Categories: Customize Your Vessel, Improve the hardware on your boat, Other Boat Hardware$20.65 – $55.87
Flush Mounted Tie Down and Ski Tow
Tie Down Features
- May be used anywhere equipment must be secured to the deck-e.g. poling platform, scuba gear, fenders, etc.
- Large size (#195) is also ideal for docks; small size (#196) is ideal for personal watercraft.
- Made of cast stainless steel.
- Assembly consists of main body and sealing cup.
- Keeps the transform clear of protruding ski tows.
- Four piece patented assembly consists of main body, sealing cup, backing plate and gasket.
Description
Flush Mounted Tie Down and Ski Tow
Our Large Tie Down, 3.5″ L x 3.5″ W x 1.25″ Deep, may be used anywhere equipment must be secured to the deck-e.g. poling platform, scuba gear, fenders, etc.
Our Small Tie Down, 2″ L x 2″ W x 1″ Deep, may also be used anywhere equipment must be secured to the deck.

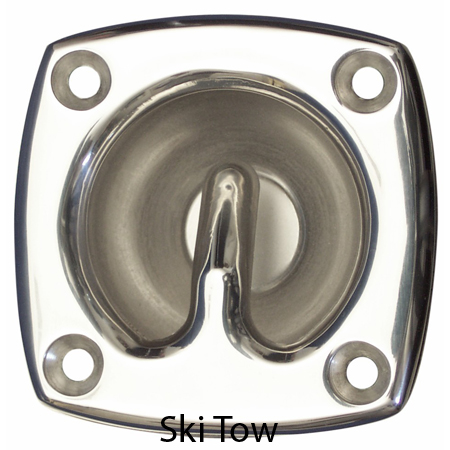

Our Flush Mounted Ski Tow, 3.5″ L x 3.5″ W x 1.25″ Deep, keeps your transom clear of protruding ski tows.
- Drill a 2 1/2-inch hole.
-
Fasten with four 1/4-inch screws (not included).
INSTALLATION for SMALL TIE DOWN
- Drill a 1- 1/2-inch hole.
- Fasten with four #8 screws (not included).
INSTALLATION for SKI TOW
- Drill a 2 1/2-inch hole.
- Attach with four 1/4-inch screws (not included).
Related Products
53 inch High Center Console
Our 53 inch High Center Console from Boaters Catalog has enough space to flush mount all your electronics. Dash mounting area for controls and steering is 34" x 16" and has an average fiberglass thickness of 3/8".
Base measurements including flange are 38" x 38" and height is 53".
Captain Charlie’s™ Center Consoles are not your everyday cookie cutter products that you see in many marine stores. They are high end, high quality, yet affordable products that have been missing from the market. We take great pride in the quality of all our products and Captain Charlie’s™ Consoles leads the pack in quality construction.
There is a plywood sandwich in the area where the steering wheel and throttle control are to be mounted. Flange along the bottom is for mounting to the deck of the boat.
53"H x 38"W x 38"D
This console is perfect for single or twin engine boats.
Freight will be quoted shortly after your order or you may call 800-745-0765 for a quote.
There is an 11 week lead time on our fiberglass products at this time.
See more of our quality boat upgrades here.
25 inch Center Console 01
Our 25 inch Center Console 01 from Boaters Catalog has large rounded corners and is perfect for boats 13' to 13' long.
Captain Charlie’s™ Center Consoles are not your everyday cookie cutter products that you see in many marine stores. They are high end, high quality, yet affordable products that have been missing from the market. We take great pride in the quality of all our products and Captain Charlie’s™ Consoles leads the pack in quality construction.
25"H x 23"W x 23"D
There is an 11 week lead time on our fiberglass products at this time.
Freight will be quoted after your order or you can call 800-745-0765.
LED Bow Light
Our LED Bow Light from Boaters Catalog is the perfect addition to the bow of your boat to keep it sleek looking and a non trip hazard area.
Navigation Light - LED Bow Light - 210-M
FEATURES:
USCG approved 2 nautical miles.
The only Pop-Up® LED light on the market.
Keeps deck free of protruding lights, folds down flush with deck when not in use.
Made of marine grade 316 stainless steel.
An optional plastic cup prevents unwanted water runoff below deck.
INSTALLATION Drill a 3 1/2" diameter hole using a hole saw. Fasten with three #10 screws (not included).
DIMENSIONS Above Deck Length = 4.43" Width (at the widest point)= 4.0" Height = 2.15"
Below Deck Depth = 2.65"
Proper maintenance consists of rinsing with fresh water regularly, and following each exposure to salt water. Stainless steel surfaces should be periodically wiped with a clean, soft cloth. Plastic surfaces may be cleaned with a mild, non-abrasive detergent solution, then rinsed with fresh water as necessary.
See more of our quality boat accessories here.
Single Cockpit Step
W 21-1/4" x H 12" x D 17 1/4"
Our Single Cockpit Step from Boaters Catalog has sleek rounded edges, built in non skid surface on top of the steps and chrome brass handles. This step box can hold up to 250 lbs. and has Ultra-violet resistant white gelcoat.
Shipping on our steps will be quoted at time of sale. You may call 800-745-0765 for a freight quote.
There is an 11 week lead time on our fiberglass products at this time.
35 inch Console with Front Seat
Our 35 inch Console with Front Seat from Boaters Catalog has an overall height of 35" and an over all length including flange is 43 1/2". Rear including flange is 38" and front including flange is 32". This console is perfect for boats 21' to 25' long.
Captain Charlie’s™ Center Consoles are not your everyday cookie cutter products that you see in many marine stores. They are high end, high quality, yet affordable products that have been missing from the market. We take great pride in the quality of all our products and Captain Charlie’s™ Consoles leads the pack in quality construction.
Front seat is so your passenger can safely sit on the center line of the boat.
There is a plywood sandwich in the area where the steering wheel and throttle control are to be mounted. Flange along the bottom is for mounting to the deck of the boat.
35"H x 36"W x 43-1/2"D
Additional measurements:
- Rear width including flange 38"
- Front width including flange 32"
- Seat approx 15-1/2" high from deck
There is an 11 week lead time on our fiberglass products at this time.
Freight will be quoted after your order or you can call 800-745-0765.
See more of our quality boat upgrades here.
15 Inch Pull Up Cleat
Our 15 Inch Pull Up Cleat from Boaters Catalog is THE LARGEST FLUSH-MOUNTED CLEAT AVAILABLE! Its the perfect cleat to keep the gunwale and bow of your vessel clean and sleek looking at the same time avoiding a trip hazard.
FEATURES:
- The largest flush-mounted cleat available!
- Made of marine grade 316 stainless steel.
- Available in both stud mount and through-bolt versions.
- Stud length is 4" on part # 115-15-S.
- Each cleat is supplied with a waterproofing cup(shown).
INSTALLATION
- Each cleat is shipped with a backing plate which also serves as the cut-out template.
- Fasten with four 3/8" diameter screws (not included),weight = 16 pounds each.
Available with visible screw holes as PN 115-15 (load of 61,000 pounds), or with studs on the underside of base as PN 115-15-S (load of 31,000 pounds).
Shipping weight 19#
Proper maintenance consists of rinsing with fresh water regularly, and following each exposure to salt water. Stainless steel surfaces should be periodically wiped with a clean, soft cloth. Plastic surfaces may be cleaned with a mild, non-abrasive detergent solution, then rinsed with fresh water as necessary.
Single Step Box
Our Single Step Box from Boaters Catalog has sleek rounded edges, built in non skid surface on top of the steps, Euro-style chrome brass handles and all cut and exposed edges are gelcoated.
Captain Charlie’s™ Heavy Water Products are not your everyday cookie cutter products that you see in many marine stores. They are high end, high quality, yet affordable products that have been missing from the market. We take great pride in the quality of all our products and Captain Charlie’s™ Heavy Water leads the pack in quality construction.
Shipping on our steps will be quoted at time of sale. You may call 800-745-0765 for a freight quote.
There is an 11 week lead time on our fiberglass products at this time.
Fiberglass Live Wells
These high quality fiberglass tanks are gel coated inside and out with a white finish outside and a blue finish inside to help keep the bait calm. The Standard tanks have a white lid for easy dipping of bait.
All our wells have no holes for water in or out so they can be custom installed on your boat with the plumbing at the correct height. They do include a drain at the bottom of the tank.
Our Heavy Water tanks are built with additional lay-ups of fiberglass and have a square clear top with stainless steel hardware.
- 30 gal. 20.5" H x 19.5" diameter
- 40 gal. 21" H x 23" diameter
- 50 gal. 24" H x 26" diameter
- 80 gal. 29.5"H x 29"W
- 100 gal. 33" H x 33.5" diameter
There is an 11 week lead time on fiberglass items at this time.
This item cannot be shipped outside the Continental United States. This item can not ship via UPS and freight will be quoted by e-mail or telephone at time of purchase. The shopping cart will not add freight to your order. We will call you with your shipping costs after your order has been received.
close
You may call us at 800-745-0765 for a quote.
Single Cockpit Step with Storage
Our Single Cockpit Step with Storage has sleek rounded edges, built in non skid surface on top of the steps and chrome brass handles. This step box can hold up to 250 lbs. and has Ultra-violet resistant white gelcoat.
L 20" x D 16" x H 13"
Shipping on our steps will be quoted at time of sale. You may call 800-745-0765 for a freight quote.
There is an 11 week lead time on our fiberglass products at this time.
48 inch Center Console
Our 48 inch Center Console from Boaters Catalog has large rounded corners and is perfect for boats 16' to 18' long. This product is great work boat size because it is tall and narrow.
48"H x 24"W x 24"D
Captain Charlie’s™ Center Consoles are not your everyday cookie cutter products that you see in many marine stores. They are high end, high quality, yet affordable products that have been missing from the market. We take great pride in the quality of all our products and Captain Charlie’s™ Consoles leads the pack in quality construction.
This product is great work boat size because it is tall and narrow.
48"H x 24"W x 24"D
Additional measurements
- 22 inch x 14 inch section that holds the steering and controls
- 21 inch x 10 1/2 inch part that angles down from the top facing the driver
- 21 inch x 7 inch, the flat part on the top
There is an 11 week lead time on our fiberglass products at this time.
Freight will be quoted after your order or you can call 800-745-0765.
